Product Description
Plastic magnetic Pump features
1. No-contact structure.
Precisely setting the position of the passive magnet and active magnet. Even in Idling, bearing will not contact with the rear thrust ring. Inhibits the frication heat and ensures the lubrication.
2. Compact and strong.
Light shape and internal parts standardization, easy maintenance. Pump body with reinforcing ribs, strength and excellent pressure resistance
3. Innovative design, no leakage.
Front cover newly designed, union type connection is convenient, no leakage. One-piece design impeller, high efficiently and quietly.
4.Upgrade the self-circulation cooling structure.
Except Impeller and magnet capsule with heat dissipation hole, Shaft sleeve and magnet capsule also with heat dissipation hole which can make the liquid around the pump shaft and bearing circulate under the action of centrifugal force and impeller. Dissipate the heat by friction, avoid deformation and melting.
Performance data
|
Model
|
In/outlet (Inch)
|
Power (Hp)
|
50HZ
|
60HZ
|
||
|
Max.F(l/min)
|
Max.Head(m)
|
Max.Head(m)
|
Max.Head(m)
|
|||
|
KMP-440
|
1.5"/1.5"
|
1/2 hp
|
245
|
12.5
|
250
|
13.5
|
|
KMP-441
|
1.5"/1.5"
|
1 hp
|
325
|
19.5
|
330
|
20
|
|
KMP-542
|
2"/1.5"
|
2 hp
|
450
|
24.5
|
460
|
25.5
|
|
KMP-552
|
2"/2"
|
2 hp
|
510
|
23
|
520
|
24
|
|
KMP-543
|
2"/1.5"
|
3 hp
|
560
|
31
|
590
|
32
|
|
KMP-553
|
2"/2"
|
3 hp
|
660
|
29
|
710
|
31
|
|
KMP-653
|
2.5"/2"
|
3 hp
|
580
|
24
|
600
|
24
|
|
KMP-663
|
2.5"/2.5"
|
3 hp
|
1000
|
15.5
|
1030
|
18.5
|
|
KMP-545
|
2"/1.5"
|
5 hp
|
580
|
35
|
650
|
39
|
|
KMP-555
|
2"/2"
|
5 hp
|
733
|
33
|
815
|
43
|
|
KMP-655
|
2.5"/2"
|
5 hp
|
950
|
27.5
|
1050
|
29.5
|
|
KMP-665
|
2.5"/2.5"
|
5 hp
|
1210
|
22.5
|
1240
|
24
|
| Pump appearance design |
| 1. Pumpbody with reinforceing ribs, strength and durable. |
| 2. Can supply material: GFRPP, CFRPP, PVDF, CF-ETFE |
| 3. Good appearance, smooth surface. |
Inlet/ouetlet and Flange design
| 1. Front cover with one-piece desgn inlet / outlet. |
| 2. Flange adopt horseshoe design. two piece fix together be one flange. |
| 3. This inlet/outlet and flange, when then assemble together, no need use any seal material, under high temperature and high working pressure, no leaking. |
 |

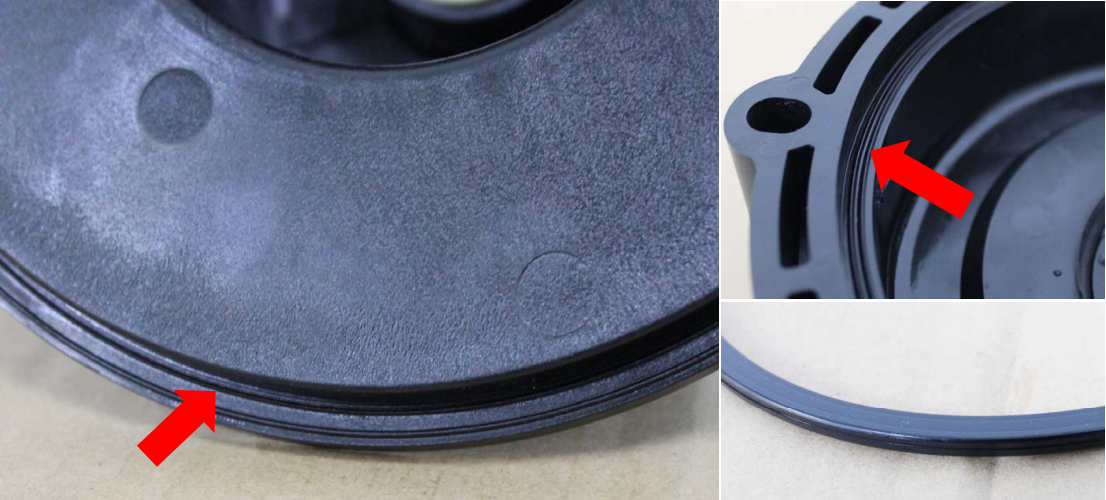

| The O-ring design |
| 1. Front casing and Rear casing's edge adopt tooth design. |
| 2. O-ring's cross section be rectangle. |
| 3. When assemble front casing and Rear casing, The tooth can fix O-ring well, avoid O-ring moving, no leaking. |
| 4. This design can keep the O-ring seal well, good pressure resistance. |
 |

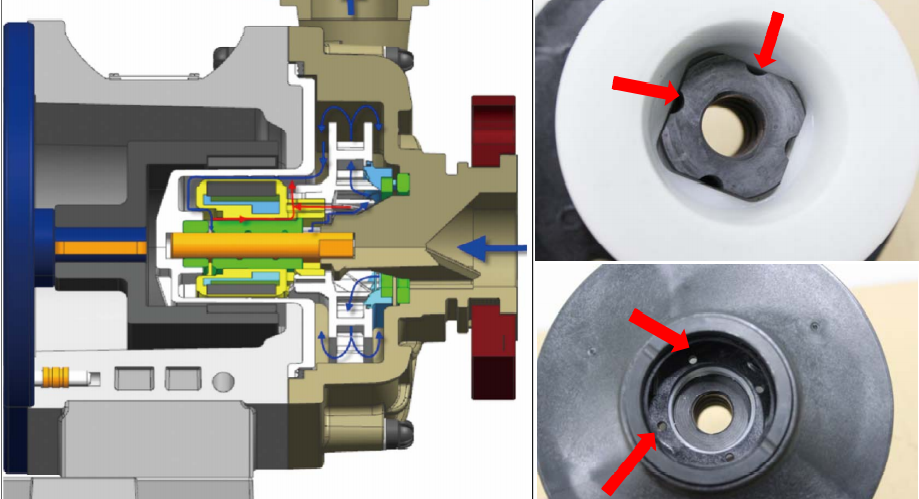

| Bearing of magnet capsule |
| 1. Most of traditional bearing in circle shape, only center hole with rifling. |
| 2. Our bearing in square shape, center hole with rifling. Meanwhile, each of four sides with one cooling hole. |
| 3. Impeller also with 4 holes which match with 4 cooling hole. |
| 4. This design can make the liquid around the shaft and bearing, dissipate the heat of frication, avoid deformation and melting. |
| 5. This design, dissipate the heat of frication performance much better than traditional design. |
Show more about pumps
Magnetic pump widely use in different industrial application
