Product Description
Stainless steel magnetic drive pump
1. No mechanical seal and no-leak, reliable and safe 2. Simple and compact design, easy maintenance
3. High temperature resistance up to 280 degrees 4. Low temperature resistance down to -80 degree
5. Stainless steel 304/316 pump body 6. Particle size 500μm, doesn’t stick, 5% content allowed.
7. Particle size 100μm, doesn’t stick, 8% content allowed.
Performance data
| Pump type | GMP | |
| 50HZ | 60HZ | |
| Max.Head (m) | 61 | 88 |
| Max. Capacity (L/min) | 1345 | 1328 |
| Temperature range | -80℃~280℃ | |
| Max.S.G | 2 | |
| Max. Viscocity (cps) | 330cps | |
| Design Pressure (Mpa) | 1.6 | |
| Flange type | ANSI/DIN/JIS | |
| Impeller type | Closed | |
| Motor type | Standard/EX motor | |
| Pump type | GMP-M | |
| 50HZ | 60HZ | |
| Max.Head (m) | 20 | 29 |
| Max. Capacity (L/min) | 99 | 123 |
| Temperature range | -80℃-280℃ | |
| Max.S.G | 2 | |
| Max. Viscocity (cps) | 120cps | |
| Design Pressure (Mpa) | 1.0 | |
| Thread type | BSP/NPT | |
| Impeller type | Closed | |
| Motor type | Standard/EX motor | |
|
Stainless steel Magnetic pump Advantage |
|||
| 1. | Magnetic pump no mechanical seal, no leaking. | ||
| 2. | Fit for solvent application, most of plastic pump couldn’t do these application. | ||

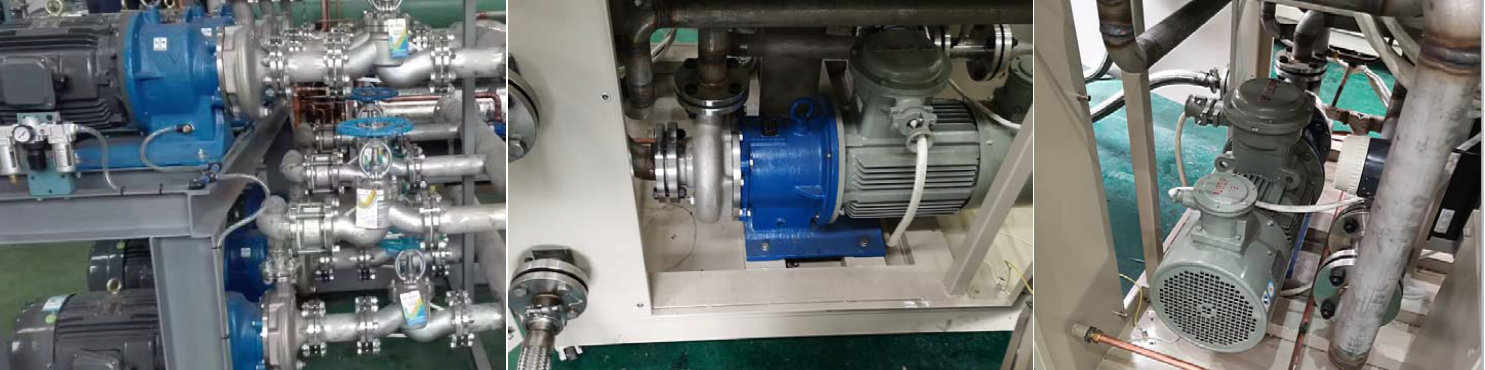

| 3. | With EX/ATEX motor and grounding, fit for some explosive application. | ||
| 4. | Stainless steel pumpbody fit for high or low temp application (-80℃ to 280℃) | ||
|

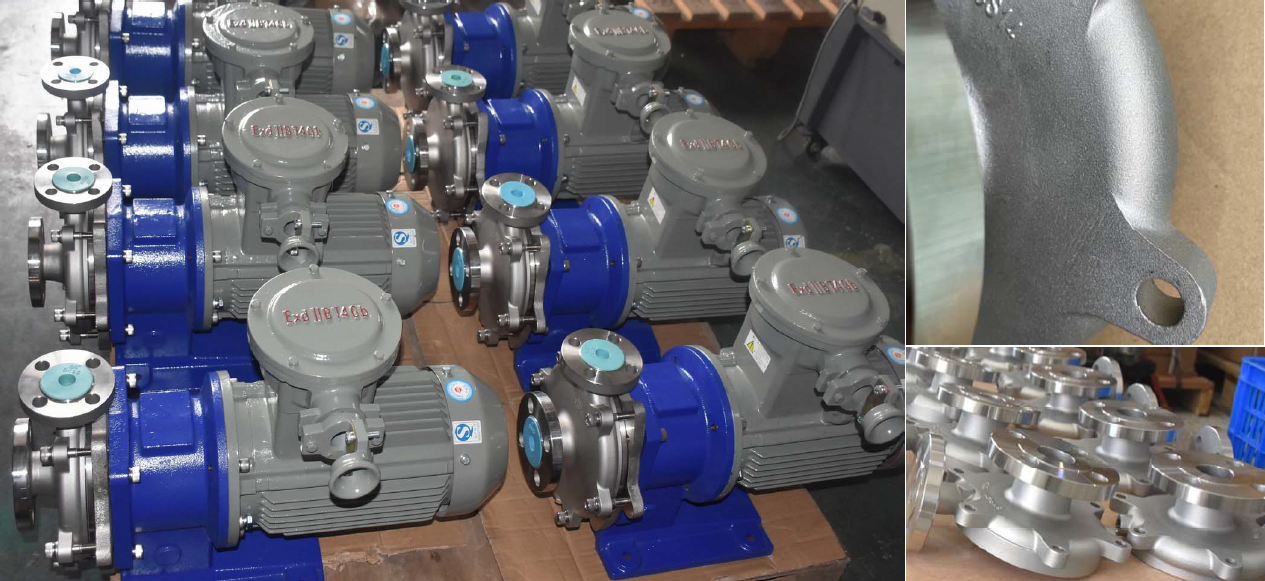

Foundry of pumpbody |
|
| 1. | Stainless steel pumpbody adopt precision casting, smooth and good appearance. |
| 2. | Pumpbody are tested with X-RAY nondestructive testing to ensure no sand hole. |
| 3. | Adopt CNC machining, high accuracy. |
|

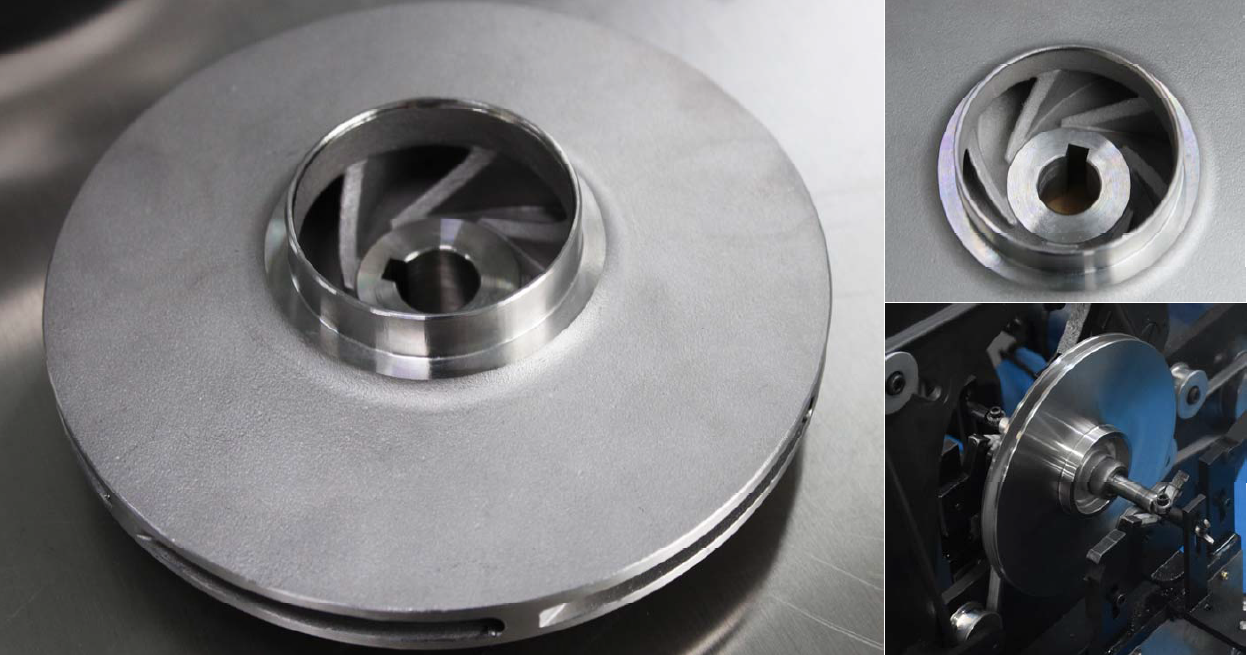

Impeller quality control |
|
| 1. | Impeller adopt precision casting, smooth and good appearance. |
| 2. | Smooth flow channel, high hydraulic efficiency |
| 3. | CNC Machining and balance testing |
|

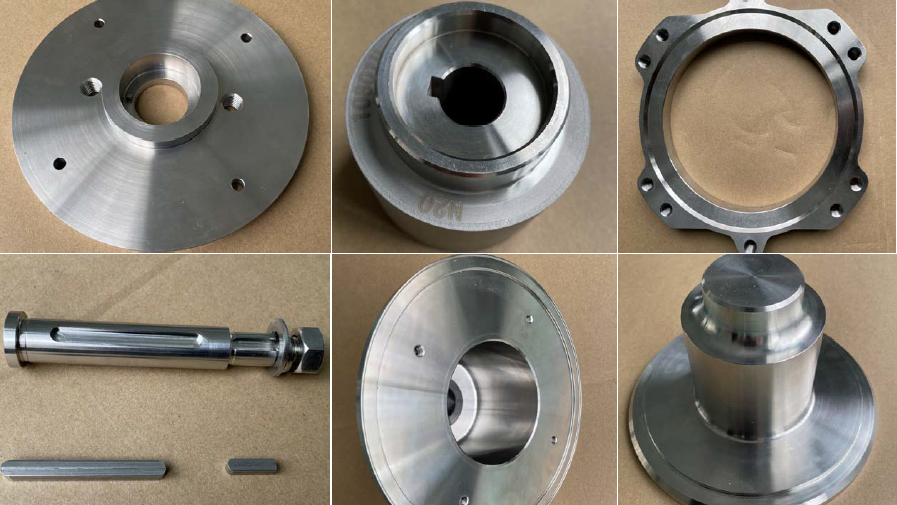

Parts and machining |
|
| 1. | Casing cover, magnet capsule, shaft, rear casing etc all of stainless steel. |
| 2. | Adopt CNC machining, high accuracy, longer life time |
|
Except normal GMP type, also have GMP-H High temperature type (-30℃ to 280℃) |
|
| 1. | Motor bracket with heat dissipation design |
| 2. | Use Rare earth SmCo magnet |
| 3. | Use Anti-High temperature graphite gasket |
| GMP-L Low temperature type (-80℃ to 150℃) | |
| 1. | Motor bracket with Nitrogen fill design, Prevent moisture from freezing. |
| 2. | Use Rare earth Neodymium magnet |
| 3. | Use Anti-low temperature graphite gasket |
